SSH-1NA
distributor
Drucktech
Category
Manually operated heat-presses
Lifelong guarantee on heated plate
100% Hungarian product
- Changeable heated plate and workplate.
- Removable plate holder.
- The flat membrane plates work as a traditional workplate if used without compressed air.
- Works with membrane and traditional plates as well.
- High surface pressure, up to 1,5 kg/cm².
- Programmed or manual time setting.
- Timer for postproduction.
- Customizable control unit.
- Counter (can be reset).
- Protection against switch-on after an eventual power outage.
- System check on start.
- Warning signal till the machine reaches the set temperature.
- Heating element cast into aluminium.
- Lifelong guarantee on heated plate.
- Strong, massive structure.
- Replaceable protective teflon sheet on heated plate.
Description

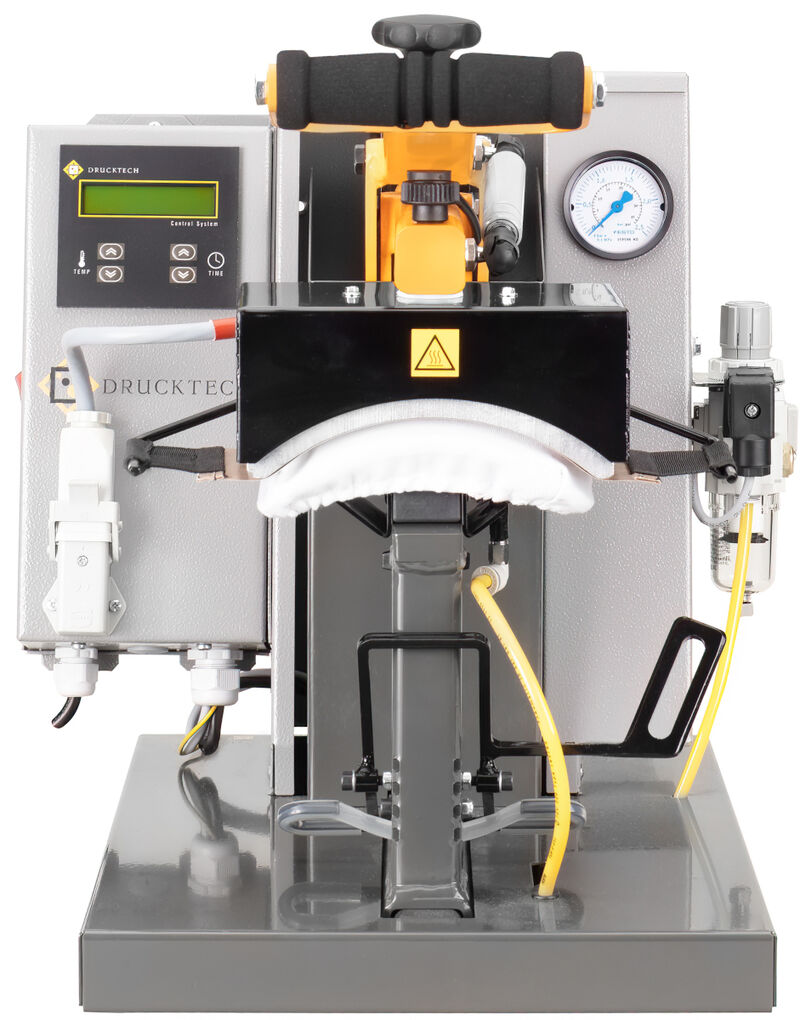

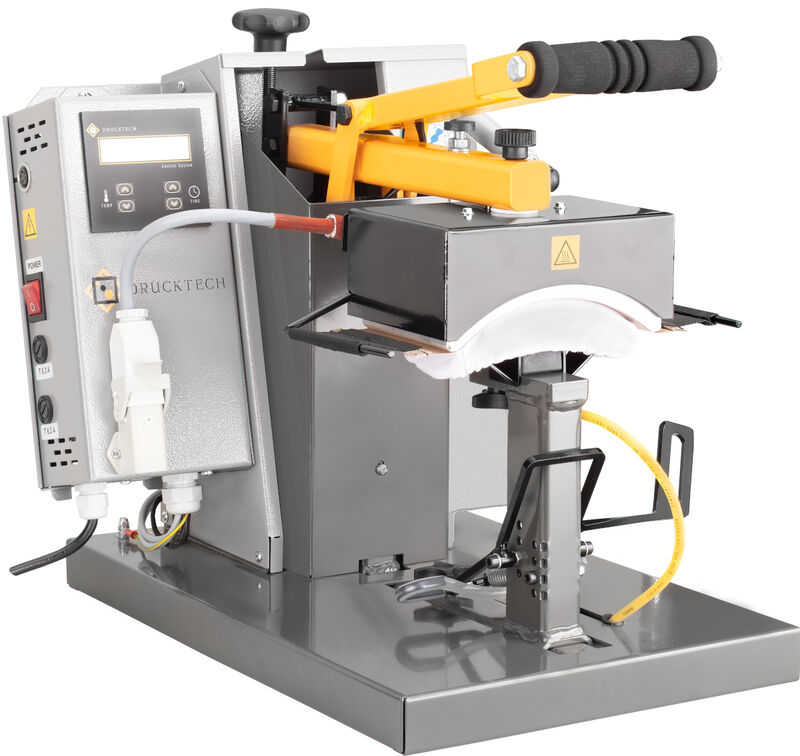

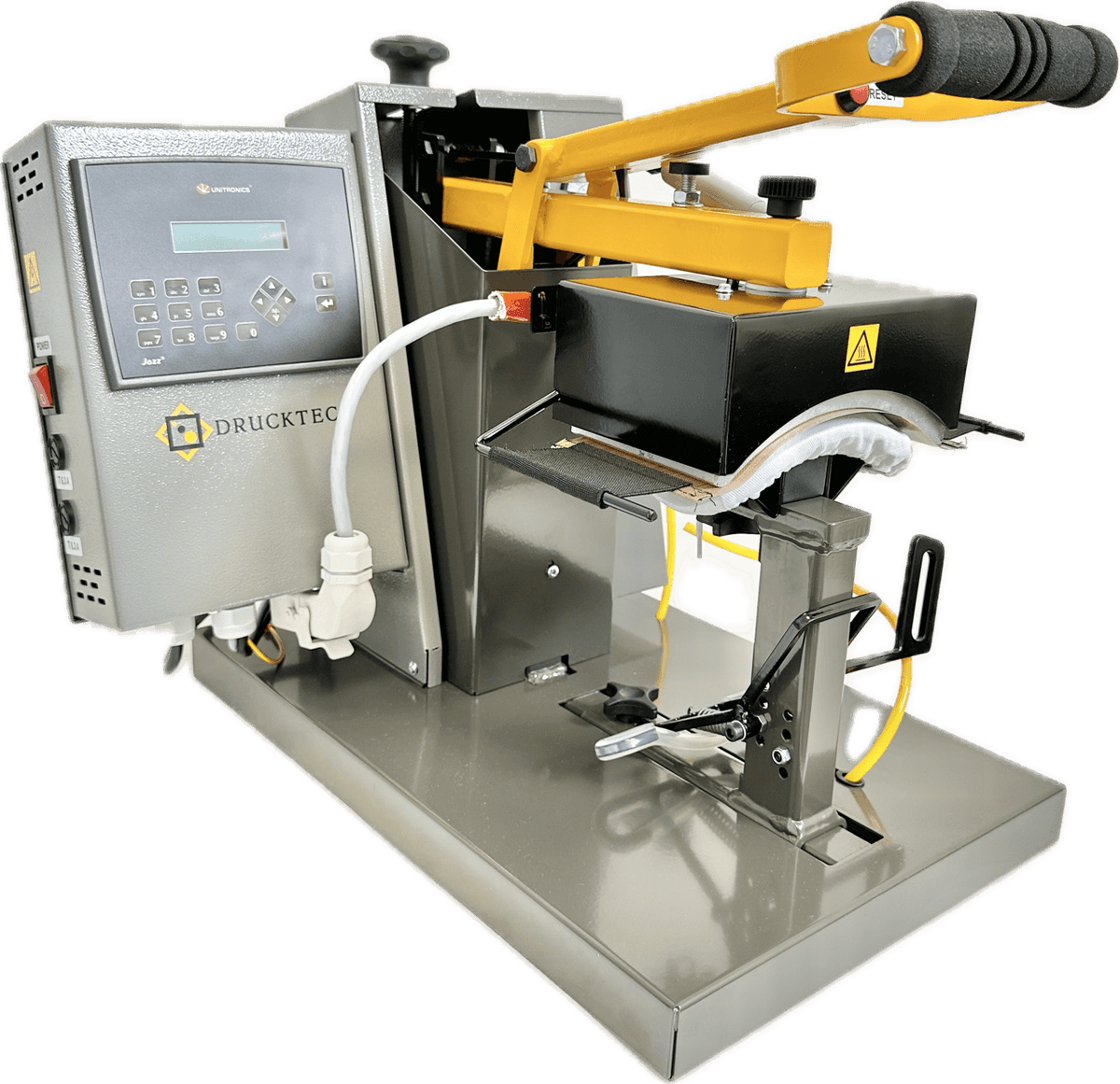

Auto-release, manual, membrane heat-press for caps
Cap heat-press with membrane workplate and heated plate for caps. As additional 15x20 cm flat membrane plate, 15x20 cm heated-plate, larger cap membrane or traditional plate, and flat membrane or traditional plates smaller than 15x20 cm are available. The machine can be used without compressed air as well, in this case it works as a traditional heat-press without the advantages of the membrane plate. The heated plate opens automatically when the pre-set time is over.
Parameter
Plate, heated plate
13x9 cm
Membrane plate
Changeable plate
Autorelease
Power
230 V / 450 W
Compressed air consumption
10
Max. pressing power
1,5
Max. material thickness
1,5 cm
Size
35x50x40 cm
Weight
25 kg
